EnglishSUS304/A2 M4 DIN404 Metric Machine Thread Slotted Capstan Screw Use In Meter Box, Instrument
Type (2)
Machine ScrewsCapstan Screws
Length (3)
10mm5mm6mm
Thread size (1)
M4
Type (2)
Machine ScrewsCapstan Screws
Length (3)
10mm5mm6mm
Thread size (1)
M4
Product Detail

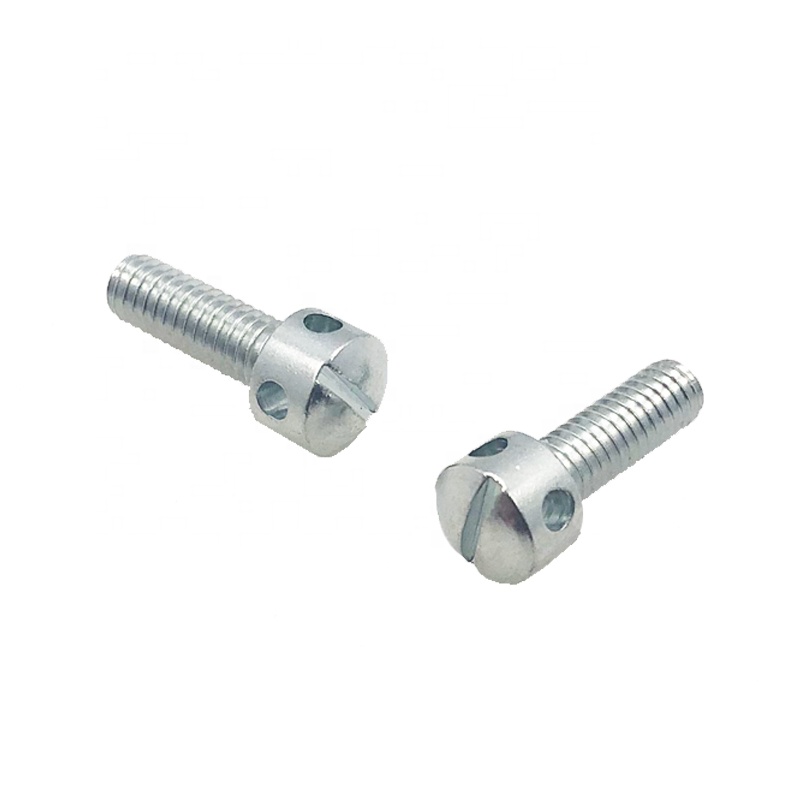

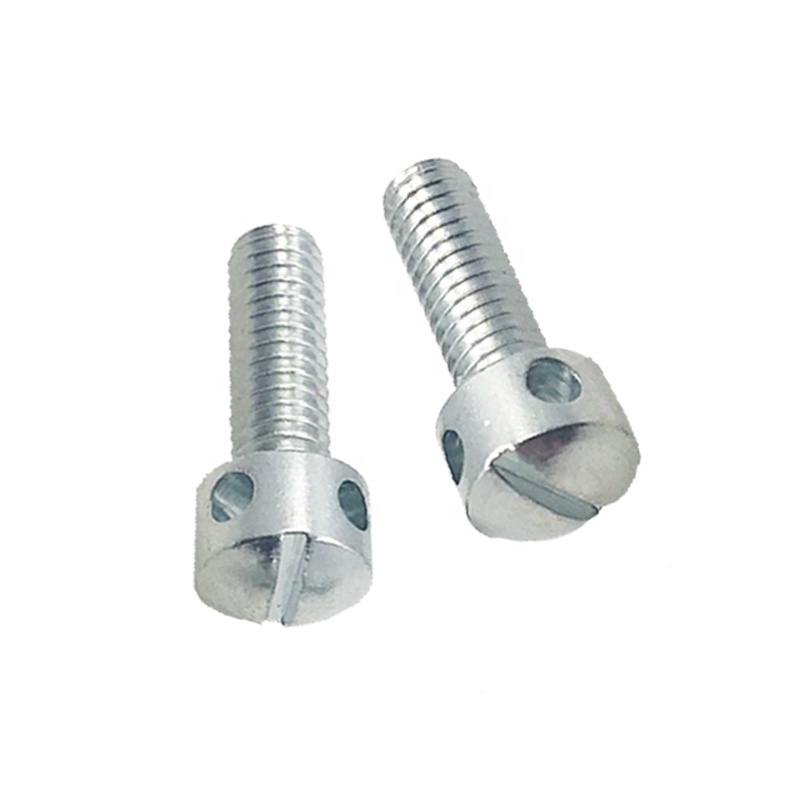

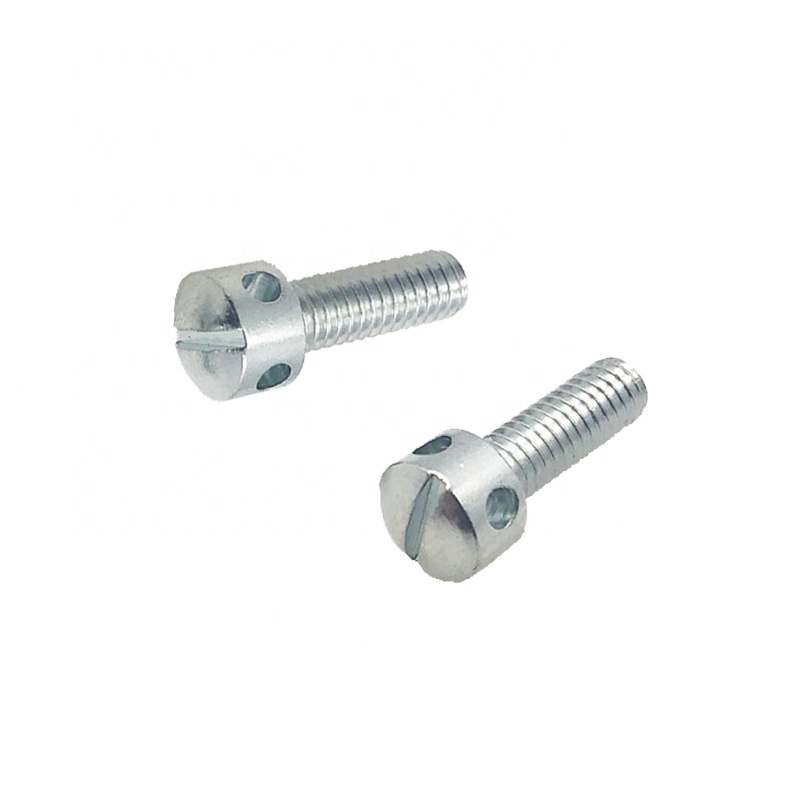

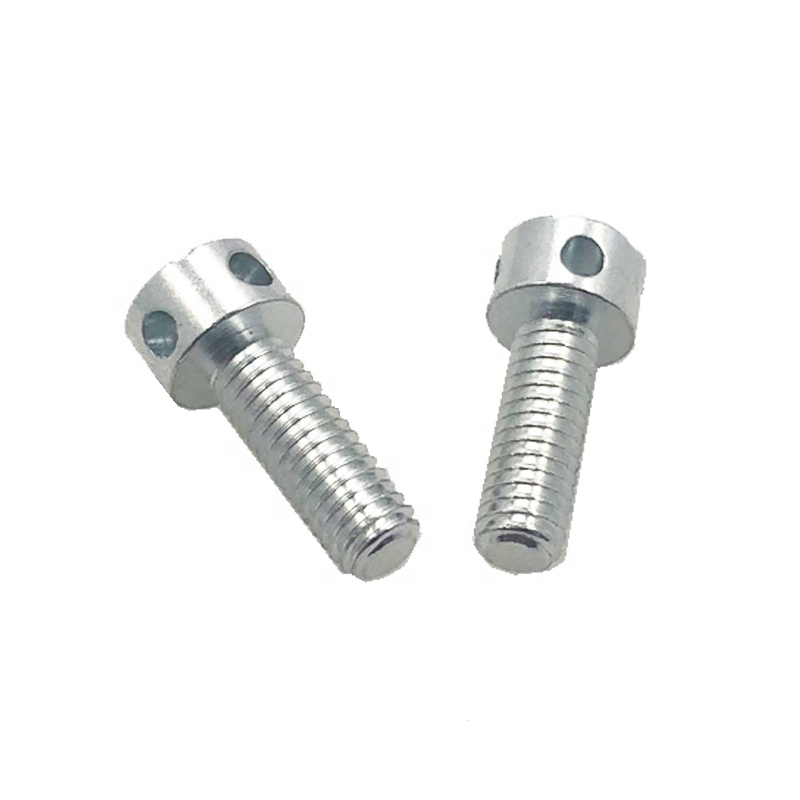

SUS304/A2 M4 DIN404 Metric Machine Thread Slotted Capstan Screw Use In Meter Box, Instrument
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Contact US
| Product Parameters | |

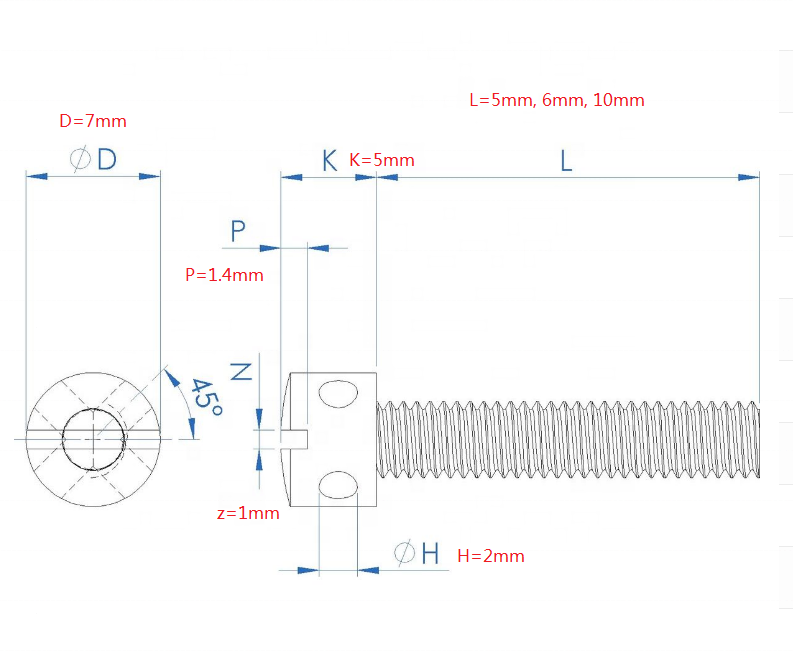

| Model | M4*5, M4*6, M4*10 |
| Product standard | DIN404, CSN21128, UNI6111, CNS4251 |
| Head type | Cylinder head |
| Drive type | Slot drive |
| Thread type | Machine thread |
| Material | Stainless steel |
| Size Range | M2-M20 |
| Surface preparation | Passivated |
| technology | cold heading |
| Sample | free of charge |
| certification | ISO9001:2015 ,SGS,ROHS |
| OEM/ODM | YES |
| Period for dispatch | 25-35 wroking days, also depends on order quantity |
| Packing | polybag+carton+pallet |
| Product Details | the slot capstan screw may be tightened by inserting a tee bar into the hole when it is not possible to use a screw driver to tighten the screw. sencodly Locking wires can be attached to the cross holes to secure the screw. |
